GER-LED STREET LIGHT SYSTEMS / DROP

GSLD / Multi-Contact, screwless, Solderless, tapeless socket Mechanism providing ease of Connection with is standard 50 cm rubber

  •  Multi-Contact, screwless, Solderless, tapeless socket Mechanism providing ease of Connection with is standard 50 cm rubber
  •  LED Section in the body of the item is independent from driver section in the fixture. Led tube body have plug&remove socket structure.
  • High-performance optical lenses with asymmetric angle of outlet and luminous transmittance.
  • Driver section consists of an independent section from body led driver have plug & remove socket structure.
  • Luminaires can be adjusted to the desired angle with special gear
  • IP Camera – 3G Connection - TCP/IP Network – Power Line Communication- on/ off/dim Capability - Humidity / Temperature Sensor Applications - Motion / Daylight Sensor Applications - Read the Fault Condition - Screenplay Writing

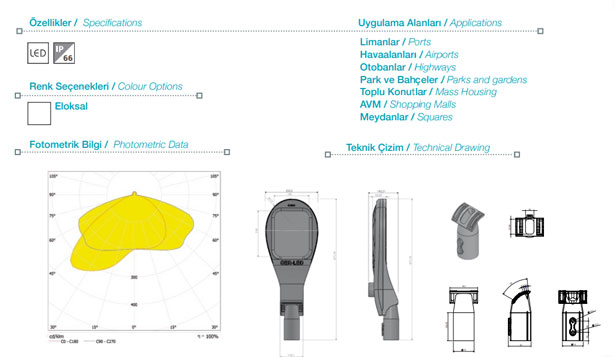

Technical Data

Product Code Power Voltage Frequency Power Factor Quantity Colour Temp Colour Rendering Index  Luminous Flux Luminous Effiency Protection Class Weight Working Temprature
GSLD-20W 20 100-240 50-60 >0.95 16 3000-6500 75-85 3480 174,0 IP 66 5,0 -30 / +60
GSLD-30W 30 100-240 50-60 >0,95 16 3000-6500 75-85 4640 157,7 IP 66 5,0 -30 / +60
GSLD-40W 40 100-240 50-60 >0,95 24 3000-6500 75-85 6250 156,3 IP 66 5,0 -30 / +60
GSLD-50W 50 100-240 50-60 >0,95 24 3000-6500 75-85 8320 166,4  IP 66 5,0 -30 / +60
GSLD-60W 60 100-240 50-60 >0,95 40 3000-6500 75-85 8800 146,7 IP 66 5,0 -30 / +60
GSLD-70W 70 100-240 50-60 >0,95 40 3000-6500 75-85 9900 141,4 IP 66 5,35 -30 / +60
GSLD-80W 80 100-240 50-60 >0,95 40 3000-6500 75-85 10280 128,5 IP 66 5,35 -30 / +60
GSLD-90W 90 100-240 50-60 >0,95 40 3000-6500 75-85 11860 131,8 IP 66 5,35 -30 / +60
GSLD-100W 100 100-240 50-60 >0,95 48 3000-6500 75-85 12900 129 IP 66 5,35 -30 / +60
GSLD-125W 125 100-240 50-60 >0,95 48 3000-6500 75-85 16200 129 IP 66 5,35 -30 / +60
